Dynamic RPG HUD

Dynamic RPG HUD hides your hotbar and status bars while you do not need them and brings them back the moment something happens. Every element can be moved, resized and tuned in a visual editor, and the HUD of several popular mods can be tuned the same way.

The mod is installed on the client only. It never moves anything on its own: every element stays where vanilla draws it until you move it.

Quick start

1. Install Fabric Loader and Fabric API, then put the mod into your mods folder.
2. Open the settings through Mod Menu (Mods → Dynamic RPG HUD → Configure), or bind a key to Open Dynamic RPG HUD Settings in Controls (it has no default key).
3. Press H at any time to switch the HUD when "Hotkey only" mode is selected.

Out of the box the HUD works in Automatic mode: it hides while you stand still at full health and hunger or while you run around, and appears when something happens.

What every button does

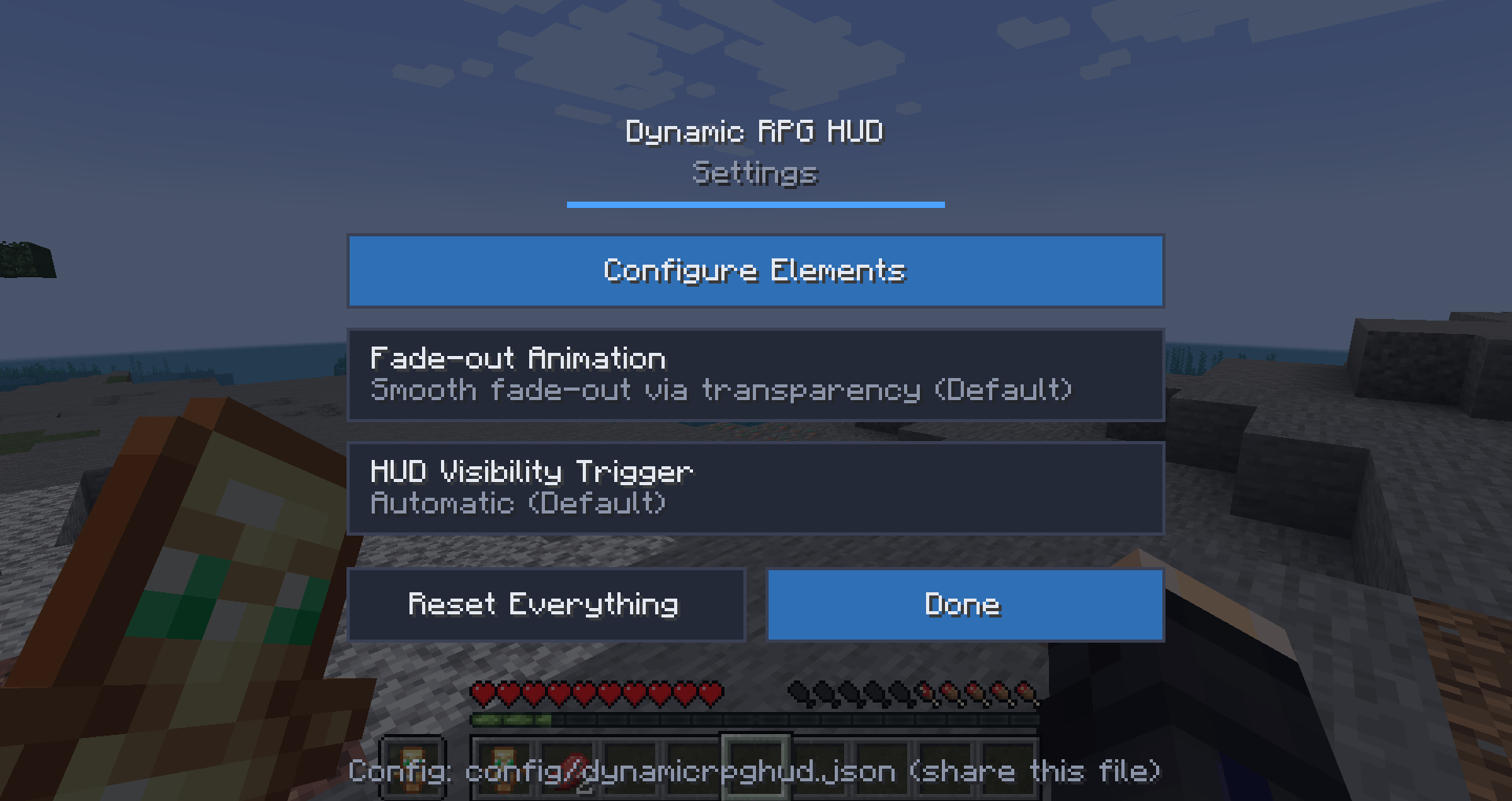

Main settings screen

• Configure Elements - opens the layout editor (see below).

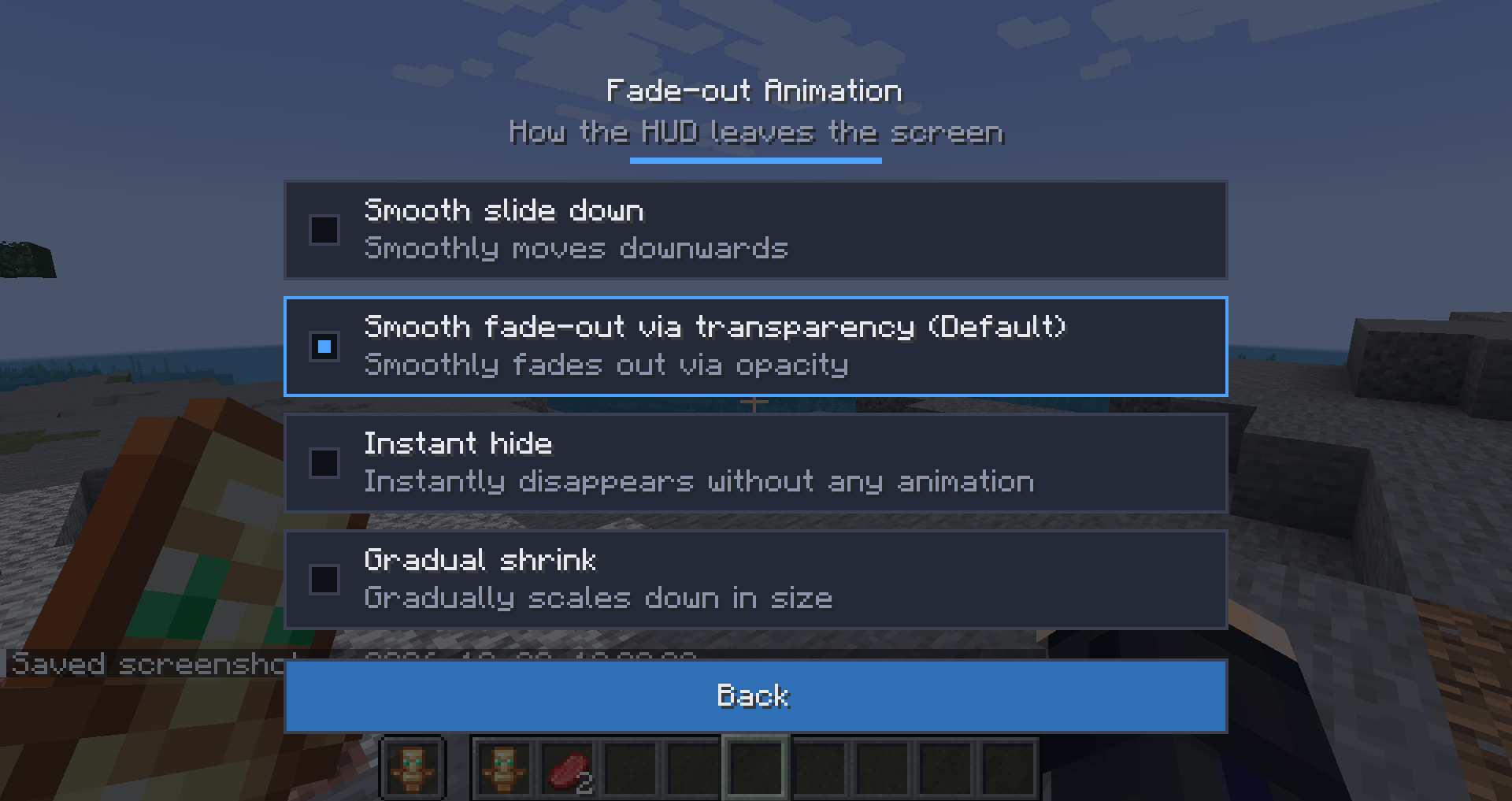

• Fade-out Animation - the default way the HUD disappears: smooth fade-out (default), smooth slide down, gradual shrink or instant hide. Any single element can override it in the editor.

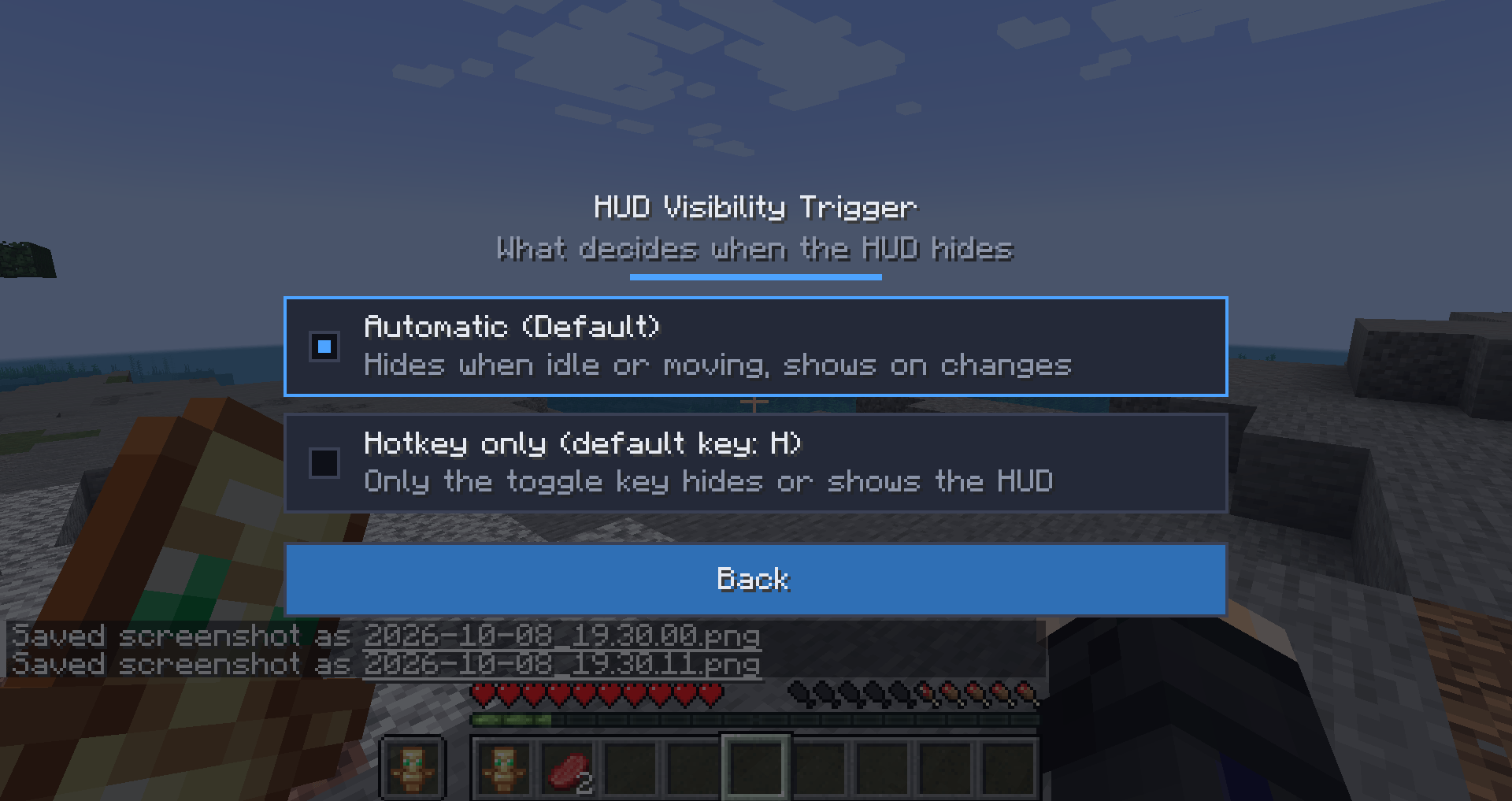

• HUD Visibility Trigger - Automatic (the HUD reacts to what you do) or Hotkey only (only the toggle key, H by default, shows or hides it).
• Automatic Mode - fine settings for Automatic mode (see below).
• Reset Everything - returns every setting to the default. You will be asked to confirm.
• Done - saves and closes.

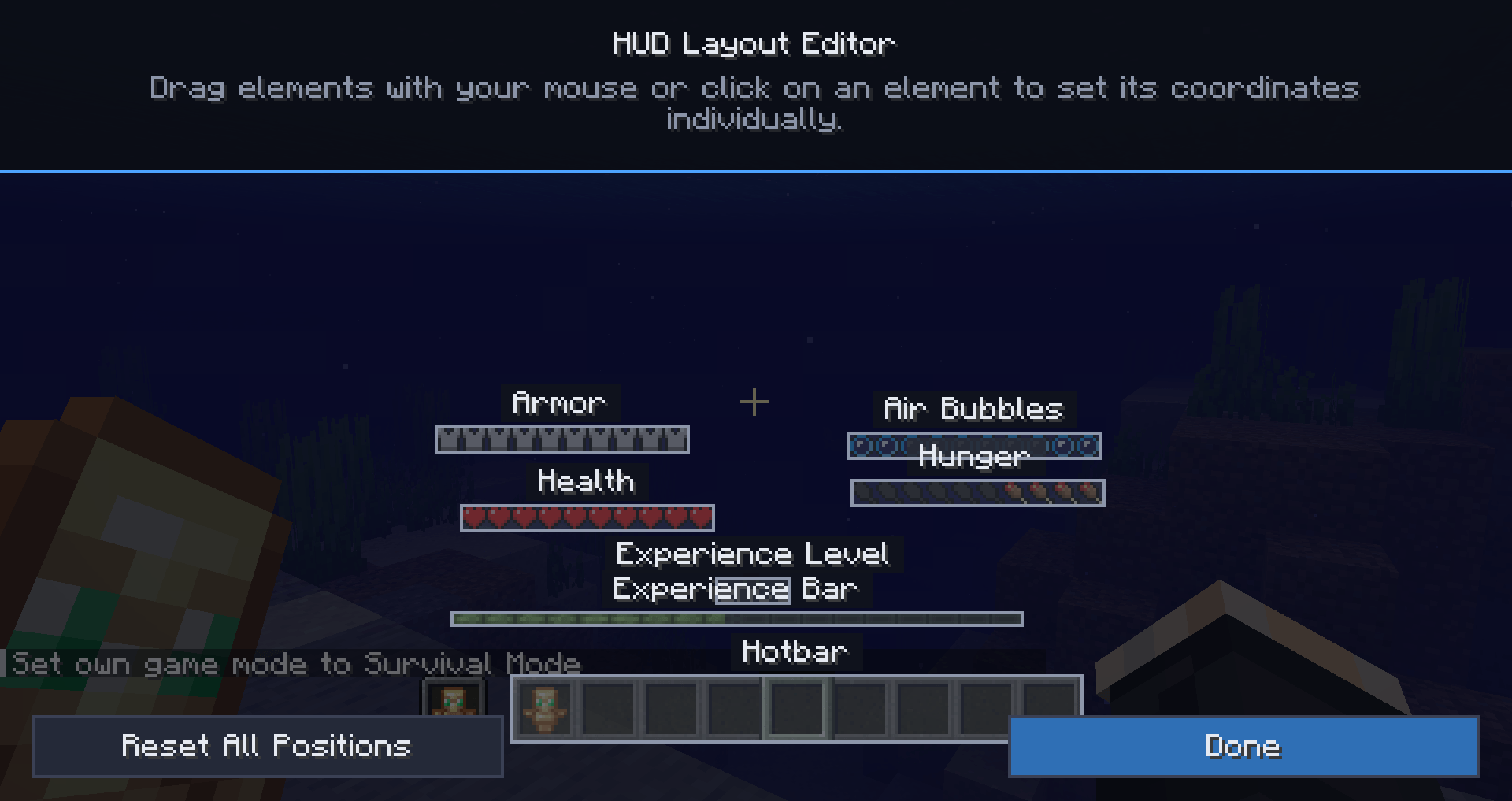

Layout editor

The game stays visible behind a dark, semi-transparent layer and every HUD element is drawn as a box.

• Drag a box with the mouse to move the element.
• Click a box to open its panel:
  • X / Y - type the offset from the normal position (0 / 0 means "as in vanilla").
  • Scale - a slider or a typed percentage.
  • Stay visible when HUD hides - this element never fades. Vanilla elements are off by default, elements of other mods are on by default.
  • Hide animation - an animation for this one element, or "Same as global setting".
  • Reset This Element - puts only this element back.
• Reset All Positions - puts every element back at its place (with confirmation).

Automatic Mode screen

• Hide delay - how many seconds the HUD stays on screen after the last event. From 0.5 to 30 seconds, 4 seconds by default.
• Show HUD when… - a list of switches (✓ on, ✗ off). Scroll it with the mouse wheel. The HUD appears when any switched-on event happens:

• Enable All / Disable All / Defaults - quick presets for the whole list.

Note: the HUD hides after the delay only while you are moving or while your health and hunger are full. If you stand still with damaged health or hunger, it stays visible.

Supported mods

When one of these mods is installed, its HUD appears in the layout editor as its own box. You can move it, scale it, choose whether it hides, and give it its own animation. By default the HUD of other mods does not hide.

None of these mods is required, and nothing is bundled.

Want another mod supported? Write to us in Discord: https://discord.gg/7qzAw5Cckx

Good to know

• Settings are stored in config/dynamicrpghud.json. Send that file to a friend to share your setup.
• Support for other mods is built from their public source code. If a mod updates and its HUD stops reacting, tell us in Discord.
• Russian and English are included.

Credits

Main creator: Mr_Lan123. Also: Productive Analyst - ipEtroIlIu.
